This guide shows you how to set up your Veo Carbon Fiber Tripod for maximum stability and best performance. Follow the steps carefully to ensure safe and secure mounting for your camera, even in challenging conditions.
Requirements
- Veo Carbon Fiber Tripod
- Stabilizing pegs
- Wind bracing cable kit
- Sandbag (for extra stability)
Step 1: Open the Base

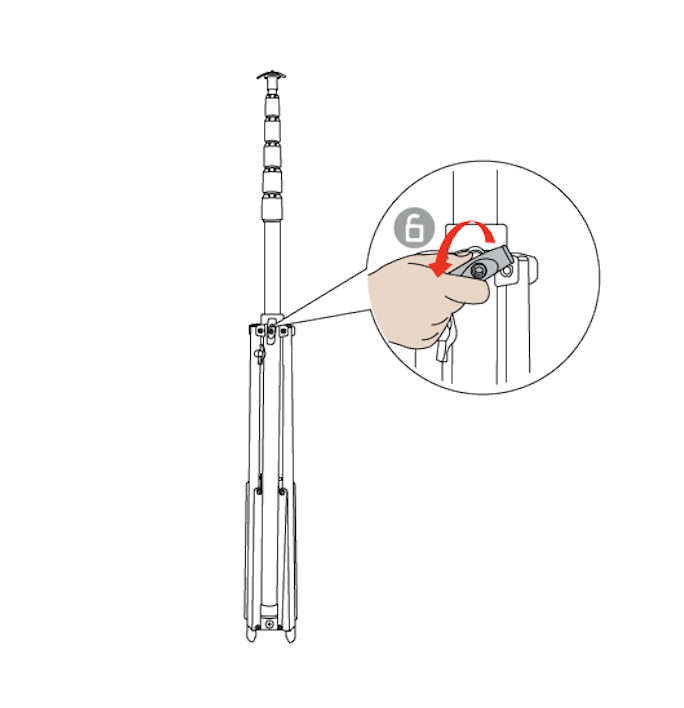

- Loosen the central locking knob on the upper bracket.

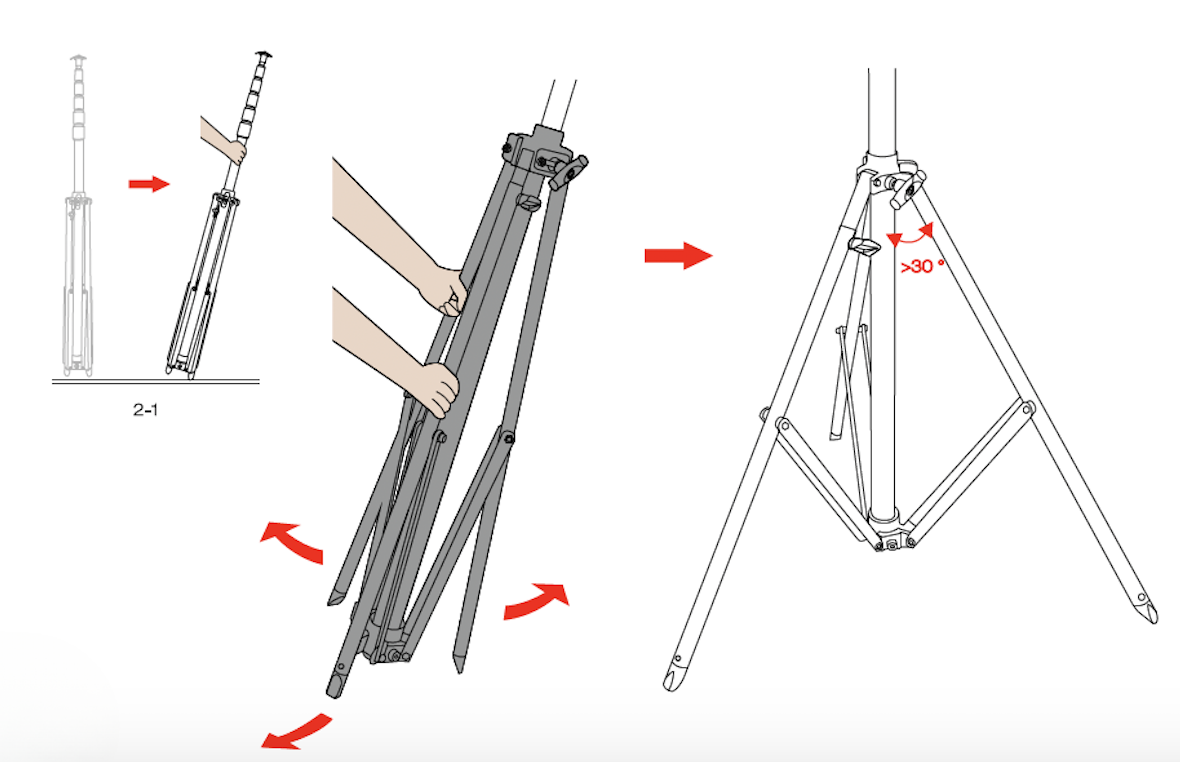

- Keep one tripod leg against the ground. Meanwhile, hold the other two tripod legs and spread them at an angle greater than 30 degrees.

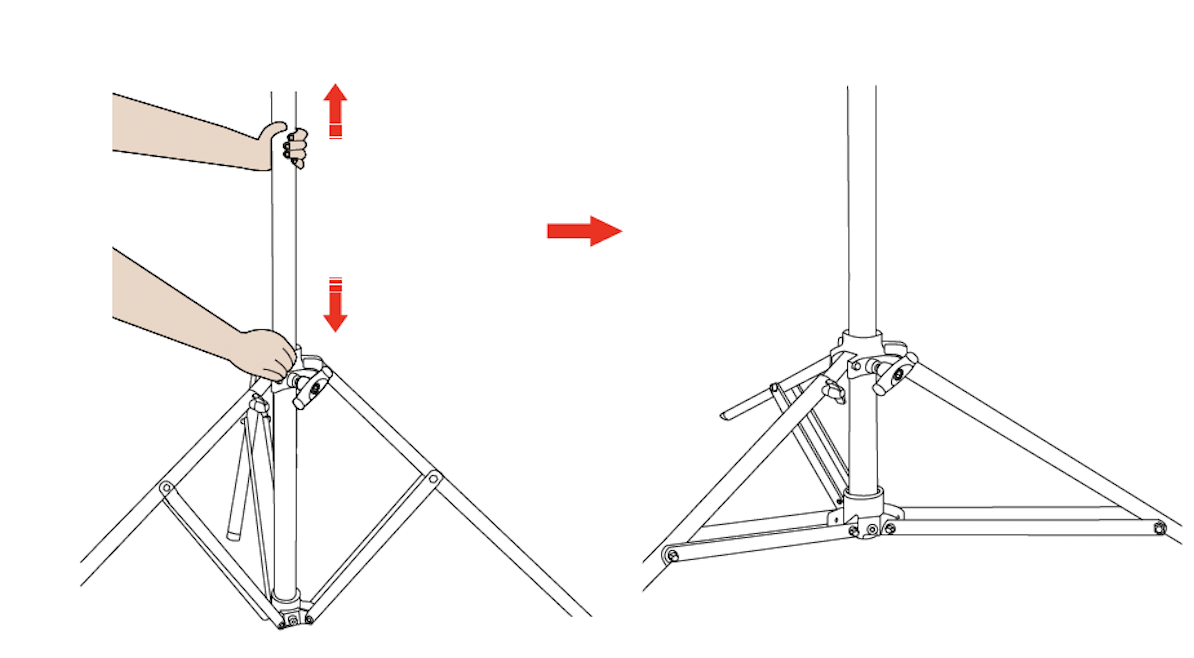

- Press down the upper bracket until the leg brace is parallel to the ground to achieve maximum stability. Then, tighten the locking knob.
Step 2: Adjust the Height

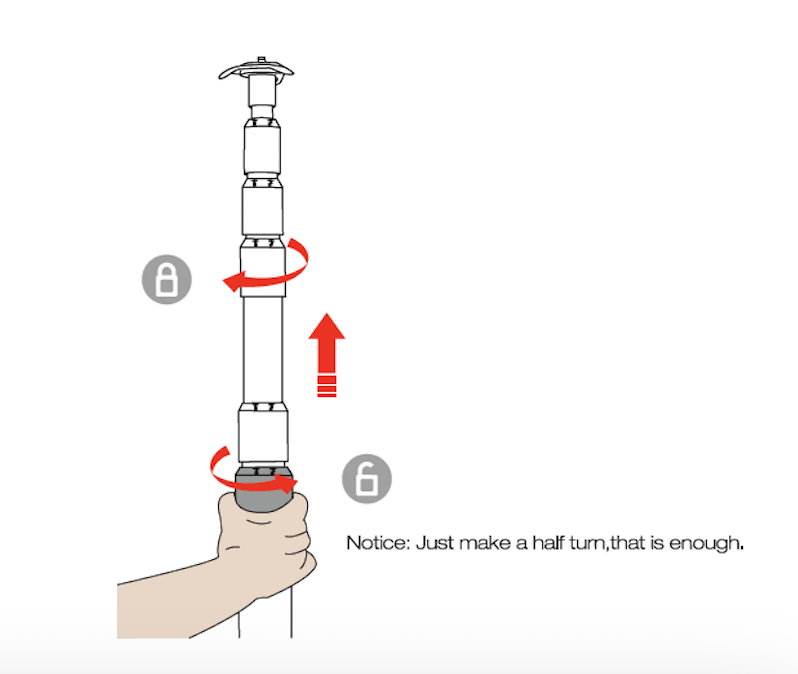

- Rotate the twist-locking handles anticlockwise to unlock the central column.
- Adjust the central column to your ideal height.
- Rotate the twist-locking handles clockwise to lock the central column securely.

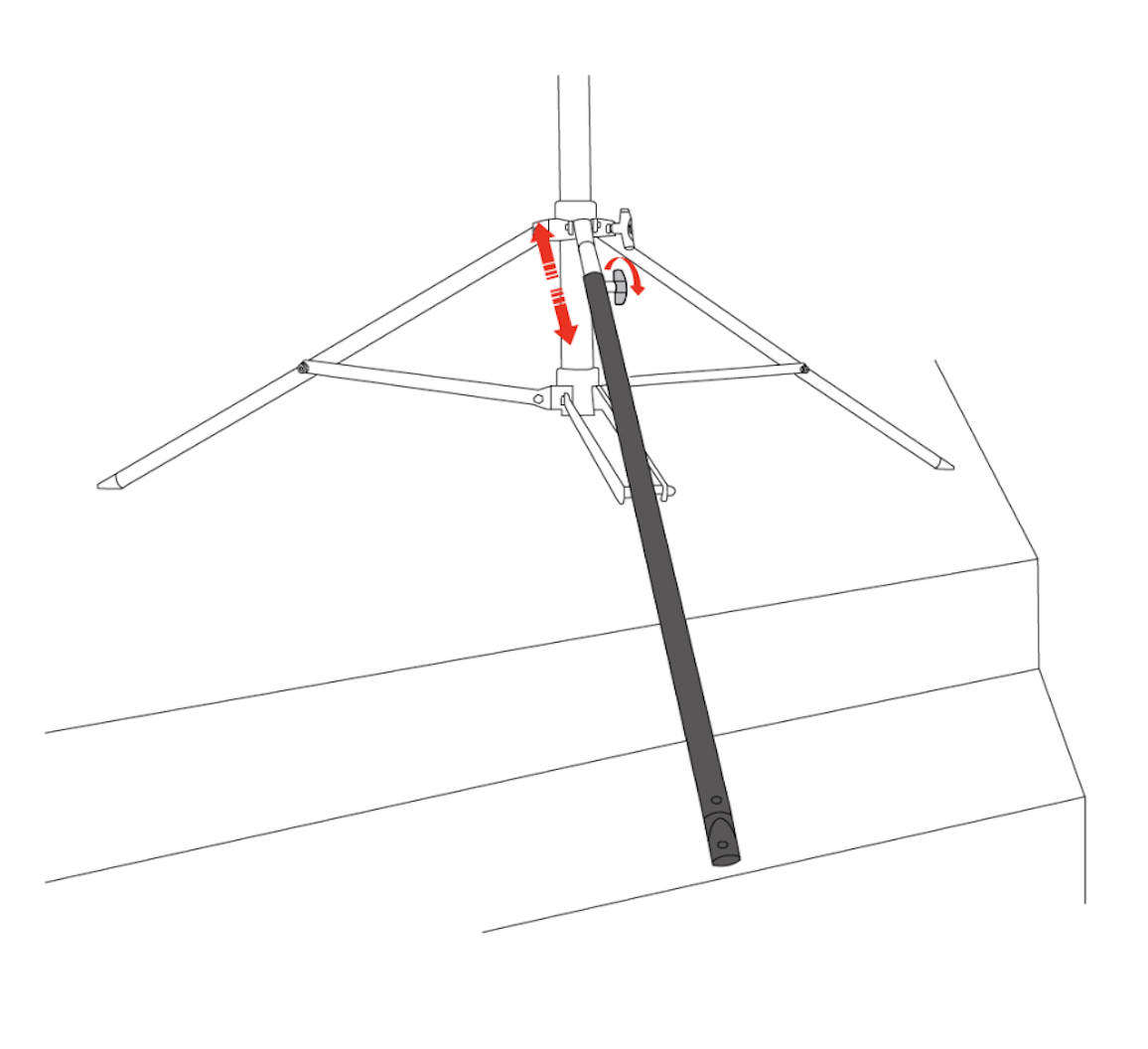

Step 3: Use the Leveling Leg (If Necessary)
- Loosen the leveling locking knob on the leg.
- Extend the leg tube until the stand is vertical.
- Tighten the leveling locking knob and ensure the stand is leveled.
Note: Use the leveling leg, especially on uneven surfaces, to maintain balance and camera safety.

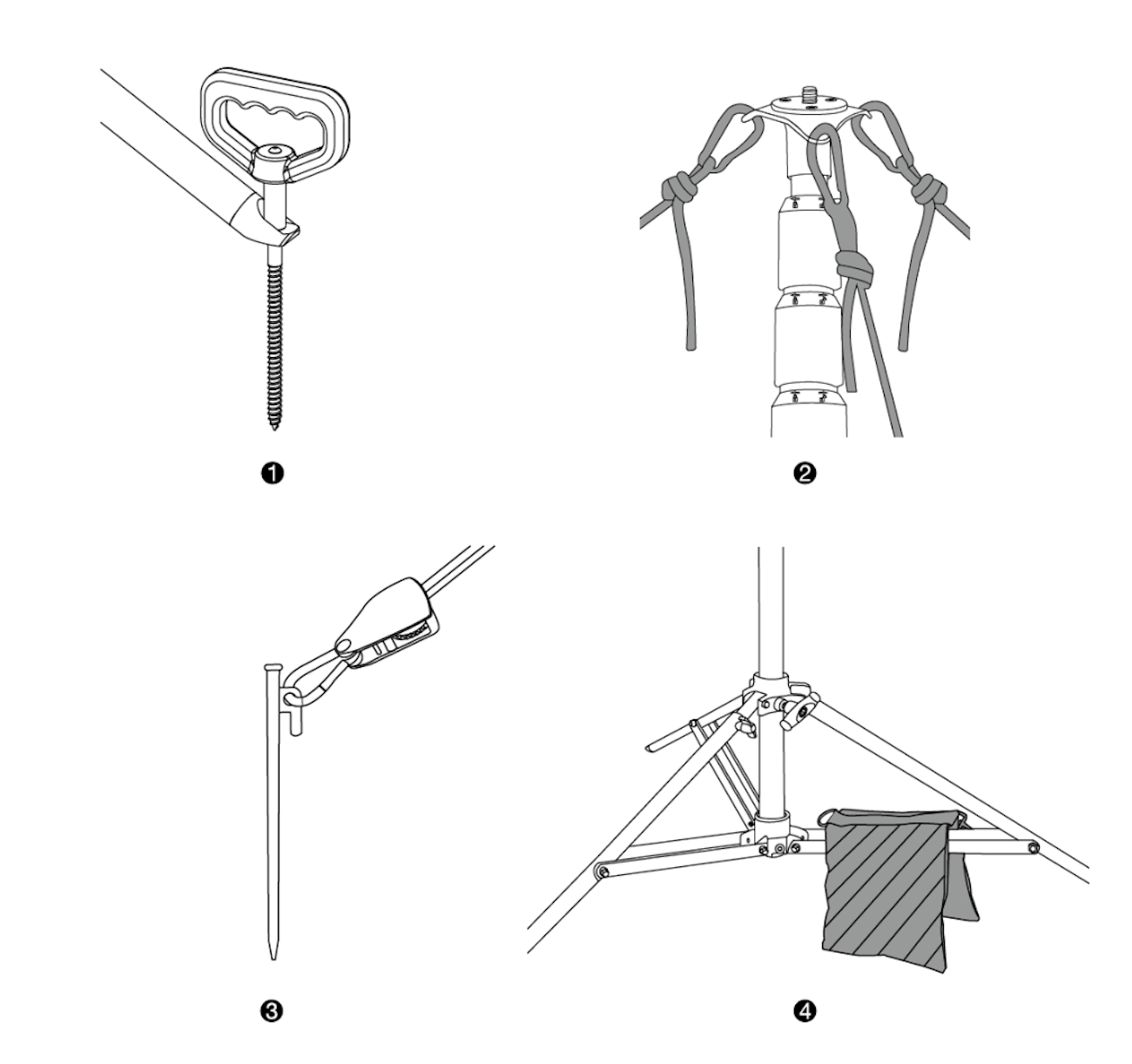

Step 4: Use the Wind Bracing
- Screw the stabilizing pegs deeply into the ground through the metal holes on each foot.
- Hook the wind bracing cable kit to the triangular plate.
- Hook the wind bracing cable kit to the metal pegs, set the pegs into the ground, and strain the cable for tension.
- Place a sandbag on a leg brace for additional stability.
Tip: Always use the stabilizing pegs and wind bracing kit — even in mild conditions — to ensure maximum tripod security and camera protection.
Safety Instructions
Follow these safety instructions carefully to prevent injury and protect your Veo Cam and tripod during use.
- Please note that the carbon fiber tripod is only intended for use with the Veo Cam.
- Please ensure that the tripod is level and secured to the ground before mounting the Veo Cam.
- Please raise or lower the center column slowly when you adjust the tripod height to avoid your hand being pinched between the locks.
- Please pay attention to your fingers when you open the base to prevent them from being trapped.
- Please don't move the tripod when the Veo Cam is mounted and the center column is raised.
- During use, please always ensure that all knobs and handles are locked tightly.
- In an outdoor windy environment, please make sure to install the wind bracing system and sandbags for the safe operation of the tripod.
Warning: Failure to do so may result in the tripod tipping, with the potential risk of personal injury and damage to the tripod and Veo Cam.
Important Note
Veo Technologies cannot be held responsible for damage to the Veo Cam, tripod, or personal injury due to improper use of the tripod from not following the above safety instructions.
